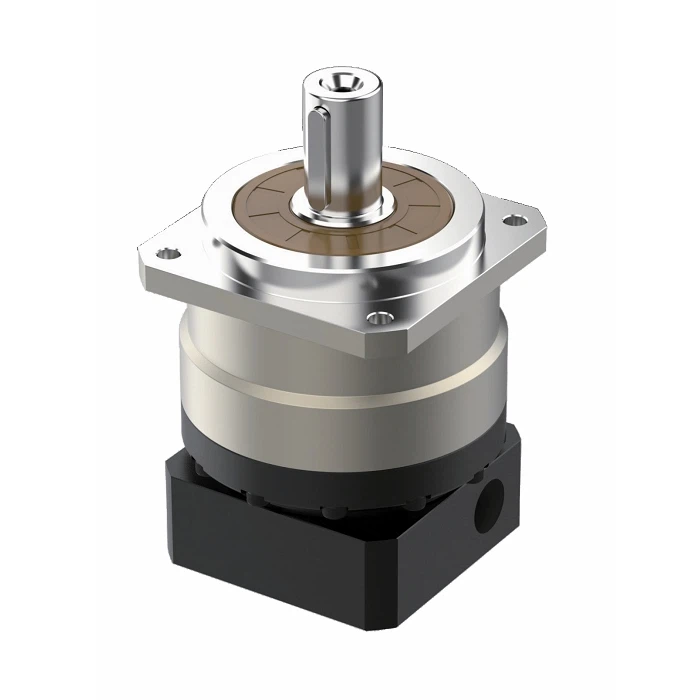

WVRB Planetary Gearbox

High efficiency: transmission efficiency is as high as 97% or more
Low noise: exquisite design, precision manufacturing, noise is less than 63dB (A)
High input speed: the maximum input speed can reach 10000 rpm
Low backlash: single section less than 2 arc minutes, double section less than 3 arc minutes
High reduction ratio: modular design, planetary gearboxes can be connected to each other with high speed ratio

Send Inquiry

Product Description

The planet gear carrier and output end adopt an integrated double-supported structure design to ensure maximum torsional rigidity, toughness, and rotational accuracy.
The planet gear adopts a full needle roller design to increase the contact area and improve the structural rigidity and output torque.
The gear uses low carbon steel carburized and quenched to achieve a surface hardness of HRC62 to obtain the best wear resistance and impact toughness.
The gear profile is designed with assistance from imported software to obtain the best possible design, thereby reducing noise.
The connection between the input end and the motor shaft adopts a special clamping method to achieve maximum clamping force and zero backlash power transmission.

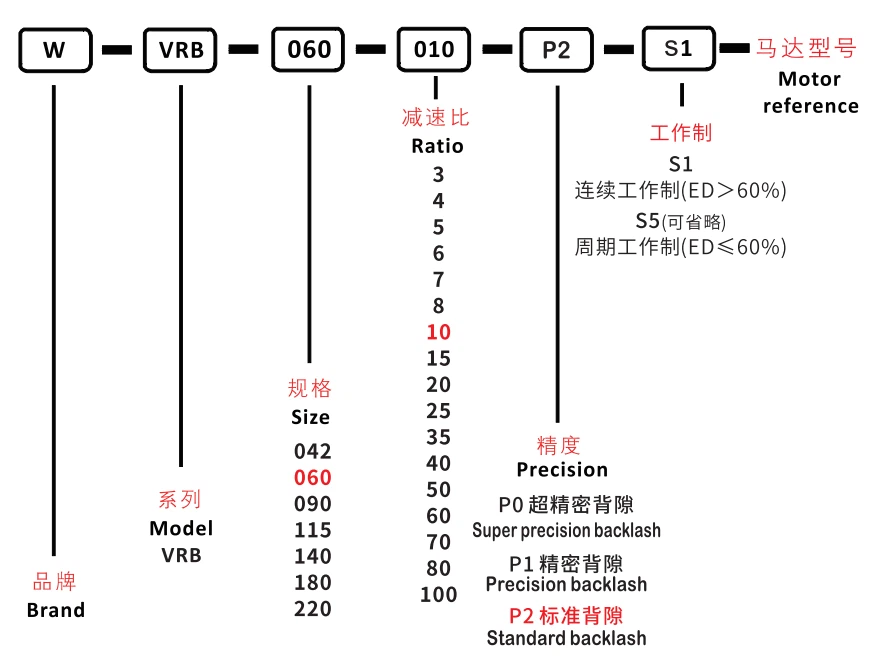

product-874-669

WVRB Series Performance Table

Specification	Unit	Stage	Ratio	WVRB042	WVRB060	WVRB090	WVRB115	WVRB140	WVRB180	WVRB220
Rated output torque T_2N	Nm		3	19	50	130	208	342	588	1140
			4	20	55	140	290	542	1050	1700
			5	22	60	160	330	650	1200	2000
			6	20	55	150	310	600	1100	1900
			7	19	50	140	300	550	1100	1800
			8	17	45	120	260	500	1000	1600
			10	14	40	100	230	450	900	1500
			15	19	50	130	208	342	588	1140
			20	20	55	140	290	542	1050	1700
			25	22	60	160	330	650	1200	2000
			30	20	55	150	310	600	1100	1900
			35	19	50	140	300	550	1100	1800
		2	40	20	55	140	290	542	1050	1700
			50	22	60	160	330	650	1200	2000
			60	20	55	150	310	600	1100	1900
			70	19	50	140	300	550	1100	1800
			80	17	45	120	260	500	1000	1600
			100	14	40	100	230	450	900	1500
Emergency stop torque T_2NOT	Nm	1,2	3-100	Triple rated output torque
Rated input speed η1N	rpm	1,2	3-100	5000	5000	4000	4000	3000	3000	2000
Maximum input speed η1B	rpm	1,2	3-100	10000	10000	8000	8000	6000	6000	4000
Precision backlashP1	arcmin	1	3~10	-	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5
Precision backlashP1	arcmin	2	15-100	-	≤3	≤3	≤3	≤3	≤3	≤3
Standard backlashP2	arcmin	1	3〜10	-	≤3	≤3	≤3	≤3	≤3	≤3
Standard backlashP2	arcmin	2	15-100	-	≤5	≤5	≤5	≤5	≤5	≤5
Economic backlashP3	arcmin	1	3~10	≤12	≤5	≤5	≤5	≤5	≤5	≤5
Economic backlashP3	arcmin	2	15-100	≤16	≤8	≤8	≤8	≤8	≤8	≤8
Torsional rigidity	Nm/arcmin	1,2	3-100	3	7	14	25	50	145	225
Allowable radial force F_2aB	N	1,2	3-100	780	1530	3250	6700	9400	14500	50000
Allowable axial force F_2aB	N	1,2	3-100	390	765	1625	3350	4700	7250	25000
Lifespan	hr	1,2	3-100	20000
Efficiency	%	1	3〜10	≥97%
Efficiency	%	2	15-100	≥94%
Weight	kg	1	3~10	0.6	1.5	3.7	7.8	16	36	53
Weight	kg	2	15〜100	0.7	1.6	4.2	11	17	37	54
Working temperature	°C	1,2	3-100	-10°C ~90°C
Lubricating		1,2		Synthetic lubricating grease
IP Grade		1,2	3-100	IP65
Installation direction		1,2	3-100	In any direction
Noise level ( η1 =3000rpm,off load)	dB(A)	1,2	3-100	≤56	≤58	≤60	≤63	≤65	≤67	≤70
