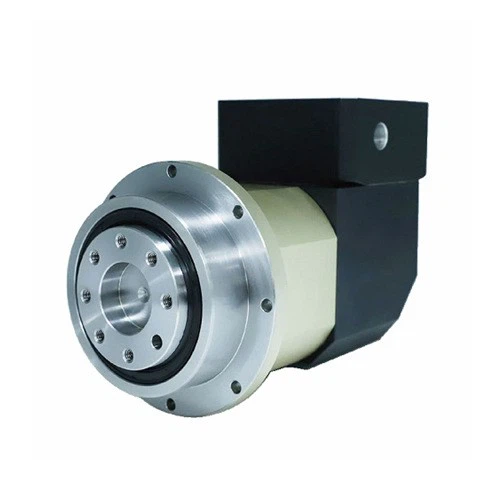

ZPLH Right Angle Planetary Reducer

1. Adopt spur gear transmission, after carburizing and quenching treatment, tooth to tooth wide practice treatment, surface sandblasting and nickel plating, stable operation of equipment, low noise.
2. Simple structure, fast delivery time, mass production.
3. There are a variety of reducer, which can meet most of the working conditions in the market.

Send Inquiry

Product Description

ZPLH Right Angle Planetary Reducer

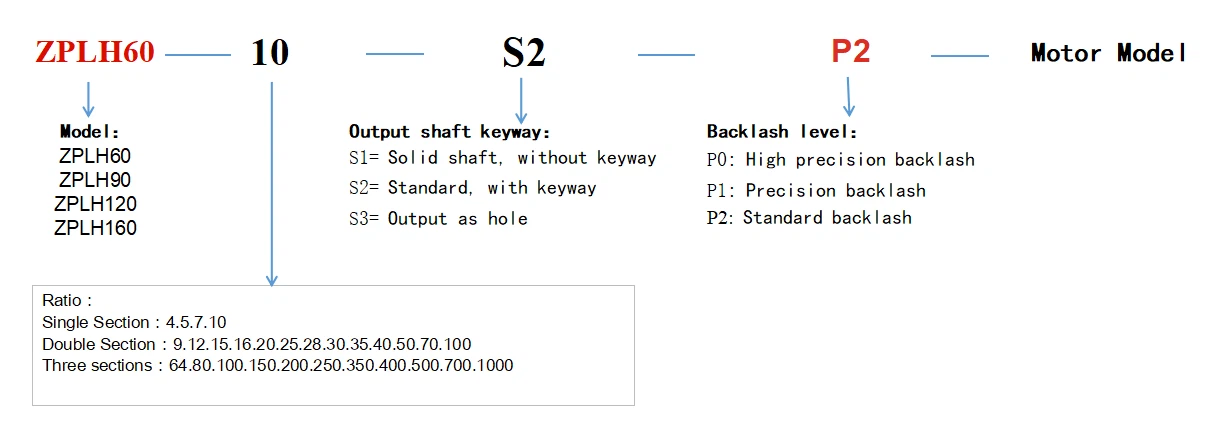

product-1214-429

Reducer Rotation Inertia Gauge

Specification	Unit	Stage	Ratio	ZPLH60	ZPLH90	ZPLH120	ZPLH160
Rotational inertia meter	kg/cm²	1	4	0.064	0.77	2.63	12.14
			5	0.064	0.77	2.63	12.14
			7	0.064	0.77	2.63	12.14
			10	0.064	0.77	2.63	12.14
		2	12-40	0.064	0.50	2.63	12.14
		2	50-100	0.064	0.50	2.63	12.14

ZPLH Series Performance Table

Specification	Unit	Stage	Ratio	ZPLH60	ZPLH90	ZPLH120	ZPLH160	ZPLH200
Rated output torqueT_2N	Nm	1	4	42	142	280	585	1220
			5	42	142	280	585	1220
			7	33	92	198	378	1000
			10	15	54	95	310	800
		2	16	42	142	280	585	1320
			20	42	142	280	585	1320
			25	42	142	280	585	1220
			35	42	142	280	585	1220
			40	42	142	280	585	1320
			50	42	142	280	585	1220
			70	33	92	198	378	1000
			100	15	54	95	310	800
		3	64	42	142	280	585	1320
			80	42	142	280	585	1320
			100	42	142	280	585	1320
			125	42	142	280	585	1320
			140	42	142	280	585	1320
			175	42	142	280	585	1320
			245	42	142	280	585	1320
			350	42	142	280	585	1320
			400	42	142	280	585	1320
			500	42	142	280	585	1320
			700	33	92	198	378	1000
			1000	15	54	95	310	800
Max torqueT_2NOT	Nm		1,2,3	Double ratedoutput torque
Max radial force F_2aB	N		1,2,3	680	1750	3100	6550	6200
Max axial force F_2aB	N		1,2,3	340	875	1550	3275	3100
Efficiency	%		1	98
			2	96
			3	94
Weight	kg		1	1.4	3	7.2	21	35
			2	1.6	3.5	9.2	26	40
			3	1.8	4.0	11.2	31	45
