What are the common failures of GSD harmonic drive?

Hey there, folks! As a supplier of GSD harmonic drives, I've seen my fair share of issues that can crop up with these nifty pieces of machinery. In this blog, I'm gonna spill the beans on the common failures you might encounter with GSD harmonic drives and how you can deal with them.

1. Tooth Wear and Fatigue

One of the most prevalent problems we come across is tooth wear and fatigue. The teeth on the flexspline and the circular spline of a GSD harmonic drive are constantly under stress during operation. Over time, this stress can lead to wear and tear on the teeth.

The wear usually starts as minor abrasions on the tooth surfaces. As it progresses, the teeth can become deformed, and in severe cases, they may even break off. This not only affects the efficiency of the drive but can also lead to a complete breakdown.

There are a few reasons why tooth wear occurs. One is improper lubrication. If the drive isn't lubricated correctly, the friction between the teeth increases, accelerating the wear process. Another factor is overloading. When the drive is subjected to loads beyond its rated capacity, the stress on the teeth becomes too much, causing premature wear.

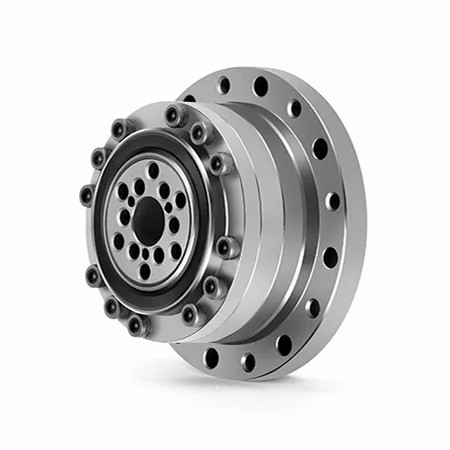

To prevent tooth wear, it's crucial to follow the manufacturer's lubrication guidelines. Regularly check the lubricant level and quality, and replace it as recommended. Also, make sure you're not overloading the drive. If you need to handle higher loads, consider upgrading to a more powerful LSS Harmonic Reducer or LHT Harmonic Reducer that can handle the increased stress.

2. Backlash Issues

Backlash is another common problem in GSD harmonic drives. Backlash refers to the amount of play or clearance between the teeth of the flexspline and the circular spline. A certain amount of backlash is normal, but excessive backlash can cause problems.

When there's too much backlash, it can lead to inaccurate positioning and reduced precision in the drive system. This is especially critical in applications where precise movement is required, such as robotics and CNC machines.

Backlash can increase over time due to tooth wear, misalignment, or improper installation. If the drive isn't installed correctly, the alignment between the flexspline and the circular spline can be off, causing uneven wear and increasing backlash.

To address backlash issues, first, check the installation. Make sure the drive is properly aligned and all the mounting bolts are tightened to the correct torque. If the backlash is due to tooth wear, you may need to replace the worn components. In some cases, adjusting the preload on the drive can also help reduce backlash.

3. Temperature-Related Failures

GSD harmonic drives generate heat during operation, and if the temperature gets too high, it can cause a range of problems. High temperatures can degrade the lubricant, reducing its effectiveness and increasing friction. This, in turn, can lead to faster tooth wear and other mechanical failures.

Excessive heat can also cause thermal expansion of the drive components. This can lead to misalignment and increased stress on the teeth, further exacerbating the wear and tear.

There are several factors that can contribute to high temperatures in a GSD harmonic drive. Overloading is a major culprit, as it causes the drive to work harder and generate more heat. Poor ventilation or a lack of cooling can also prevent the heat from dissipating properly, leading to a build-up of temperature.

To prevent temperature-related failures, make sure the drive isn't overloaded. Provide adequate ventilation around the drive to allow for proper heat dissipation. You can also consider using additional cooling methods, such as fans or heat sinks, if necessary. Regularly monitor the temperature of the drive during operation, and if you notice any abnormal temperature increases, investigate the cause immediately.

4. Flexspline Cracking

The flexspline is a critical component of a GSD harmonic drive, and cracking in the flexspline can be a serious issue. Flexspline cracking can occur due to a variety of reasons, including fatigue, overloading, and improper handling.

Fatigue cracking is often the result of repeated stress cycles over time. As the flexspline flexes and unflexes during operation, tiny cracks can start to form on the surface. These cracks can then propagate and eventually lead to a complete failure of the flexspline.

Overloading can also cause flexspline cracking. When the drive is subjected to loads beyond its capacity, the stress on the flexspline can become too great, causing it to crack. Improper handling, such as dropping or mishandling the drive during installation or maintenance, can also damage the flexspline and lead to cracking.

To prevent flexspline cracking, avoid overloading the drive. Follow the manufacturer's guidelines for installation and handling to ensure the flexspline isn't damaged. Regularly inspect the flexspline for any signs of cracking or damage, and replace it if necessary.

5. Lubrication Problems

As I mentioned earlier, lubrication is crucial for the proper functioning of a GSD harmonic drive. However, there are several lubrication-related problems that can occur.

One common issue is lubricant contamination. Dirt, dust, and other contaminants can enter the drive and mix with the lubricant. This can reduce the lubricant's effectiveness and cause increased friction and wear.

Another problem is lubricant degradation. Over time, the lubricant can break down due to high temperatures, oxidation, or chemical reactions. When the lubricant degrades, it loses its ability to lubricate properly, leading to increased wear and potential failures.

To prevent lubrication problems, keep the drive clean and protected from contaminants. Use high-quality lubricants that are recommended by the manufacturer. Regularly change the lubricant according to the maintenance schedule to ensure it remains in good condition.

Conclusion

Well, there you have it - the common failures of GSD harmonic drives and how to deal with them. As a supplier, I understand the importance of keeping these drives running smoothly. By being aware of these potential issues and taking the necessary preventive measures, you can extend the lifespan of your GSD harmonic drive and avoid costly breakdowns.

If you're facing any problems with your GSD harmonic drive or are looking to purchase a new one, don't hesitate to get in touch. We're here to help you find the right solution for your needs. Whether you need a LSS Harmonic Reducer or LHT Harmonic Reducer, we've got you covered. Let's start a conversation and see how we can work together to get you the best harmonic drive solution.
